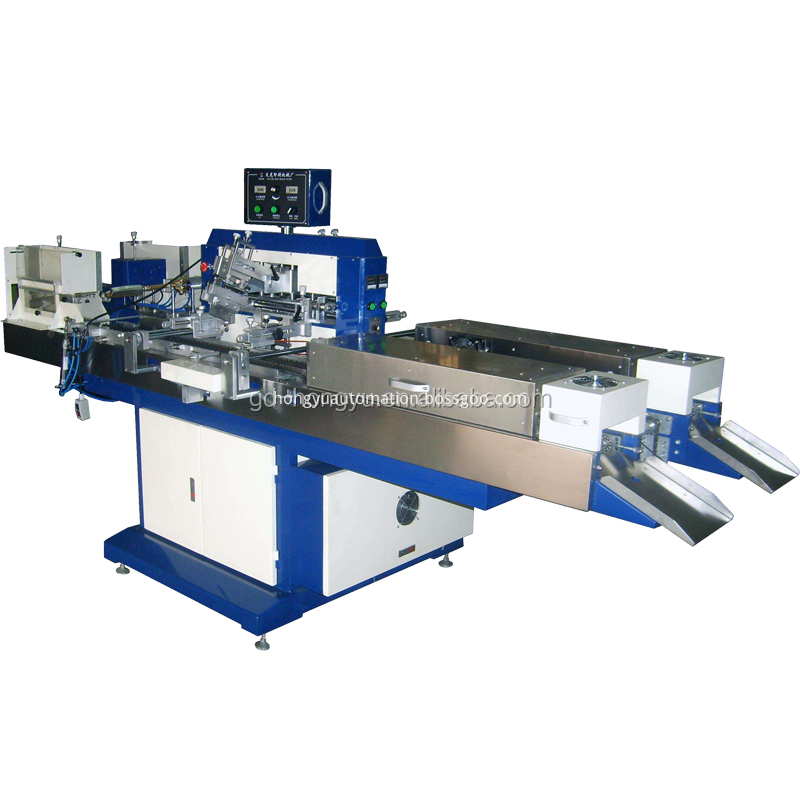

High speed auto silk screen printing machine printer

  • High speed auto silk screen printing machine printer
  • High speed auto silk screen printing machine printer
  • High speed auto silk screen printing machine printer
  • High speed auto silk screen printing machine printer

High speed auto silk screen printing machine printer

    Packaging: wooden case
    Productivity: 20
    Brand: HONGYU
    Transportation: Ocean
    Place of Origin: china
    Supply Ability: 20
    Certificate: CE
    Port: SHENZHEN

Basic Info

Model No.: HY-BG1

Product Description

The screen printer was designed for small diameter objects such as candle, pearl pen, pencil, mark pen, board pen, signature pen,eyebrow pen, labium cream, Injector, chopsticks and high speed screen printing.

Specification
1. Auto loading with loading tower.
2. Auto dust cleaning: dust cleaned by compressed air. Can be installed with electric precipitator with extra cost.
3. Two printing lines in one: the machine is combined with 2 printing lines, printing at the same time. The speed can be much
faster and the cost is much lower. The 2 lines printing are controlled by 1 operator only. And the 2 printing lines can print
different products or different images at the same time.
4.Single color or multi color optional: the single color machine can be upgraded to multi color printing by adding the
registration system.
5. PLC control, touch screen display.
6. UV curing and IR drying: machine can be installed with UV curing or IR drying, or with both drying so that the operator can
choose any of them. The machine can be stopped anytime to add ink or clean the mesh, and the printed products will not be burned
in the oven.
7. Cooling system: Products are cooled down before unloading.
8. Auto unloading with unloading slot. Unloading container attached.
9. Machine is all electric driven except dust cleaning, no compressed air requirement.
10.Machine built with safety cover to be CE demand.

Parameters:

* Objects diameter:φ6~φ20 mm
* Objects length:55~160 mm
* Printing stroke: 20~80 mm
* Max printing speed:8000 pcs/h
* Motor wattage: 4.5kw
* Feeding Motor: 25W;
* Mainly Motor: 375W;
* IR Motor: 60W
* Cool Motor: 5W.
* Net weight: 450kg
* Max Frame dimension: 150×250mm.
* IR wattage: 1KW(up)+1KW(Down)
* IR Length: 800mm

Printed samples
